USP：Budget-friendly and easy to use—up and running in just one minute

Product Model

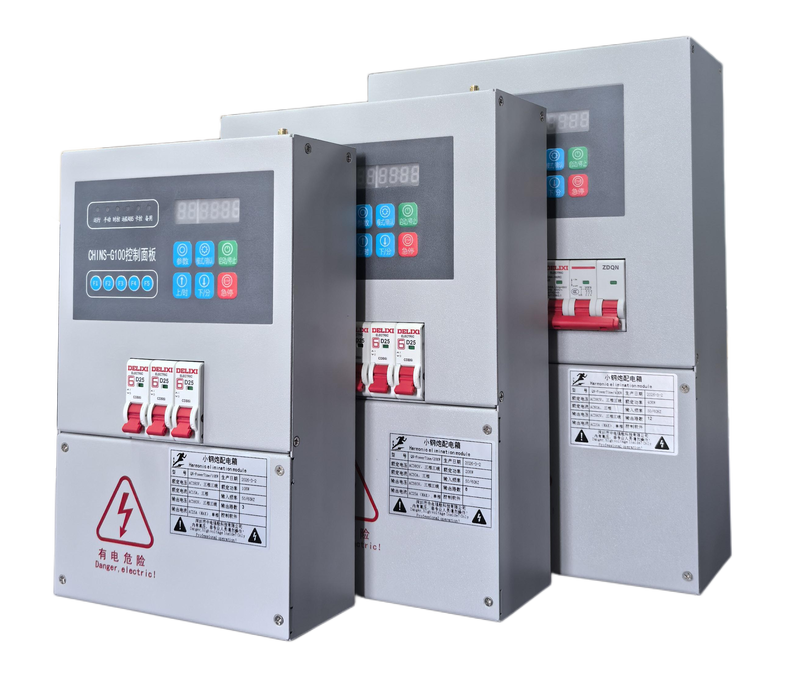

QN-Power Time /10 kW–60 kW Compact Scheduled Control Distribution Box

Product Description

The Power Box Series Distribution Box is the second core product family in the “Compact High-Power” portfolio. It is primarily designed for the domestic market, while also being fully suitable for overseas markets. The product offers high safety, reliable performance, aesthetic design, and competitive pricing, while remaining compatible with both domestic and international power supply systems.

This distribution box is suitable for applications including LED display systems, factories, industrial plants, and mining enterprises. It supports multiple control methods, including Manual Control, Scheduled Control, Remote RS-485 Control, Remote On/Off Control, and Remote 433 MHz Control.

The unit is equipped with Overcurrent Protection, Short-Circuit Protection, and Over-Temperature Protection, supports wide-range input voltage for global power systems, and operates silently during normal operation.

The distribution box supports multiple delayed power outputs to help stabilize the power grid.

Functional Features

1. Control Modes: It supports Manual Control, Centralized Control via Remote RS-485, Remote 433 MHz Control, Scheduled Control, On/Off Control, and Automatic Cascade Control.

1）RS-485 Control: via third-party platforms

2）Remote 433 MHz Control: supplied with a compact external antenna, with a control range of up to 50 meters.

3) Scheduled Control: Up to four time periods can be configured per day, with weekday-based start/stop settings and support for cross-day scheduling.

4）On/Off Control: It supports Remote On/Off Control via manual inputs.

5) One-to-One Control: One-key start/stop via front panel button and dedicated one-to-one power switching

2. Cable Routing: Bottom-entry/bottom-exit design is applied to prevent debris or foreign objects from entering the enclosure.

3. Operating Characteristics: Silent operation features strong anti-interference capability and resistant to power grid voltage fluctuations.

4. Emergency Power-On: In case of control module failure, manual power-on is supported. This is applicable to 40 kW and 60 kW models.

Protection Functions

1. Short-Circuit Protection

2. Neutral Conductor Temperature Protection
3. Reverse-Drive Protection

4. Overcurrent / Overload Protection

5. Overvoltage / Undervoltage Protection (40 kW, 60 kW)

Warranty

3-year warranty with lifetime service
