USP：Exquisitely crafted, resistant to foreign object intrusion.

Product Model

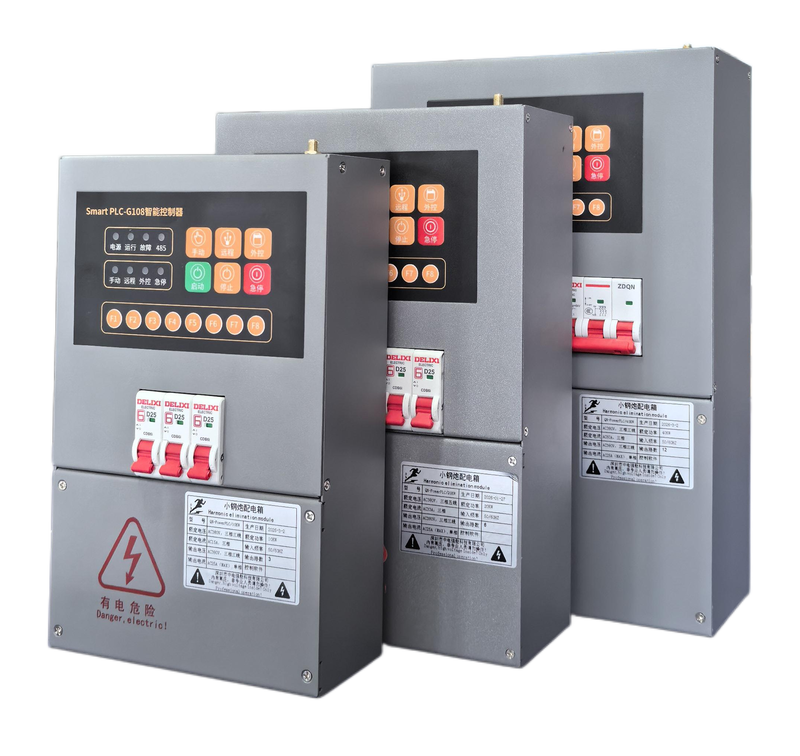

QN-Power PLC Compact High-Power PLC Distribution Box 10 kW-60 kW

Product Description

The Power PLC Series Distribution Box is the first core product family in the “Compact High-Power” portfolio. It is primarily designed for the domestic market, while also being fully suitable for overseas markets. The product offers high safety, reliable performance, aesthetic design, and competitive pricing, while remaining compatible with both domestic and international power supply systems.

This distribution box is suitable for applications including LED display systems, factories, industrial plants, and mining enterprises. It supports multiple control methods, including Manual Control, Scheduled Control, Remote RS-485 Control, Remote On/Off Control, Remote 433 MHz Control, and Ethernet Control.

The unit is equipped with Overcurrent Protection, Short-Circuit Protection, and Over-Temperature Protection, supports wide-range input voltage for global power systems, and operates silently during normal operation.

Functional Features

1. Control Modes: It supports Manual Control, Remote RS-485 Control, Remote 433 MHz Control, Scheduled Control, On/Off Control, Automatic Cascade Control, and Network Control.

1) Remote RS-485 Control: Third-party platform integration, Protocol: Modbus RTU

2) Network Control: Manufacturer proprietary protocol, Protocol: Modbus TCP

3) Remote 433 MHz Control: supplied with a compact external antenna, with a control range of up to 50 meters.

4) Scheduled Control: Up to four time periods can be configured per day, with weekday-based start/stop settings and support for cross-day scheduling.

5) On/Off Control: It supports Remote On/Off Control via manual inputs.

6) One-to-One Control: One-key start/stop via front panel button and dedicated one-to-one power switching

2. Cable Routing: Bottom-entry/bottom-exit design is applied to prevent debris or foreign objects from entering the enclosure.

3. Operating Characteristics: Silent operation features strong anti-interference capability and resistant to power grid voltage fluctuations.

4. Emergency Power-On: In case of control module failure, manual power-on is supported. This is applicable to 40 kW and 60 kW models.

5. Original Software: It is compatible with domestic operating systems and supports 18 languages.

Protection Functions

1. Short-Circuit Protection

2. Neutral Conductor Temperature Protection

3. Reverse-Drive Protection

4. Overcurrent / Overload Protection

5. Overvoltage / Undervoltage Protection (40 kW, 60 kW)

Warranty

3-year warranty with lifetime service

Dimensions

QN-Power PLC/10KW 270*170*70, Metal enclosure, 2KG

QN-Power PLC/20KW 300*200*81, Metal enclosure, 3.2KG

QN-Power PLC/40KW 330*230*100, Metal enclosure, 4.2KG

QN-Power PLC/60KW 350*265*100, Metal enclosure, 5.2KG
